Corner Crimping Machine for Aluminium Door & Window

ZHAC 100x1800x3000 four head combining Machine CNC for Aluminium Door & Window


Digital control corner combining machine is totally automatic throughout its process. It adopts linear bearing pair in motor head and is highly precise and resistant. Imported ball screws, high repetition locating accuracy imported CNC system, convenient operation and use reliability.

 ZHAC2 100x1800x3000 four head combining Machine CNC for Aluminium Door & Window

Used in the assembly of Aluminium Windows & Doors. It can complete the assembly of one window frame complete with high efficiency. The compacting device can move forward and backward automatically. Adopted hydraulic system is convenient for the operation and maintenance of the machine. Corner crimping blazes can be adjusted on all sides, widely used in the processing of different profiles. The biggest assembled size of window frame: 1800x3000mm. The smallest assembled size of window frame: 450x450mm. The movement distance of corner crimping cylinder: 0 ~ 50mm.

ZHAC 100x3000 Double –head corner combining Machine for Aluminium Door & Window


Used for corner punching and riveting combination of aluminium window and door. Two corners connecting at one time are available. With high efficiency production. Wide profile processing range due to convenient location and clamping device setting. High processing accuracy due to super precision linear motion pair adopted in moving parts. Hydraulic system supplied large punching and riveting force. Connection seam error 0.15mm.





ZHAC-130 Corner Crimping Machine for Aluminium Door & Window


Used for combining the 900 corner of high quality aluminium windows & door. Adjustable locating device for various sections and sizes processing. Left and right punching heads adopt hard synchronous feeding device, thus avoided useless deformation and make the connections strong. Connection seam error 0.15mm.

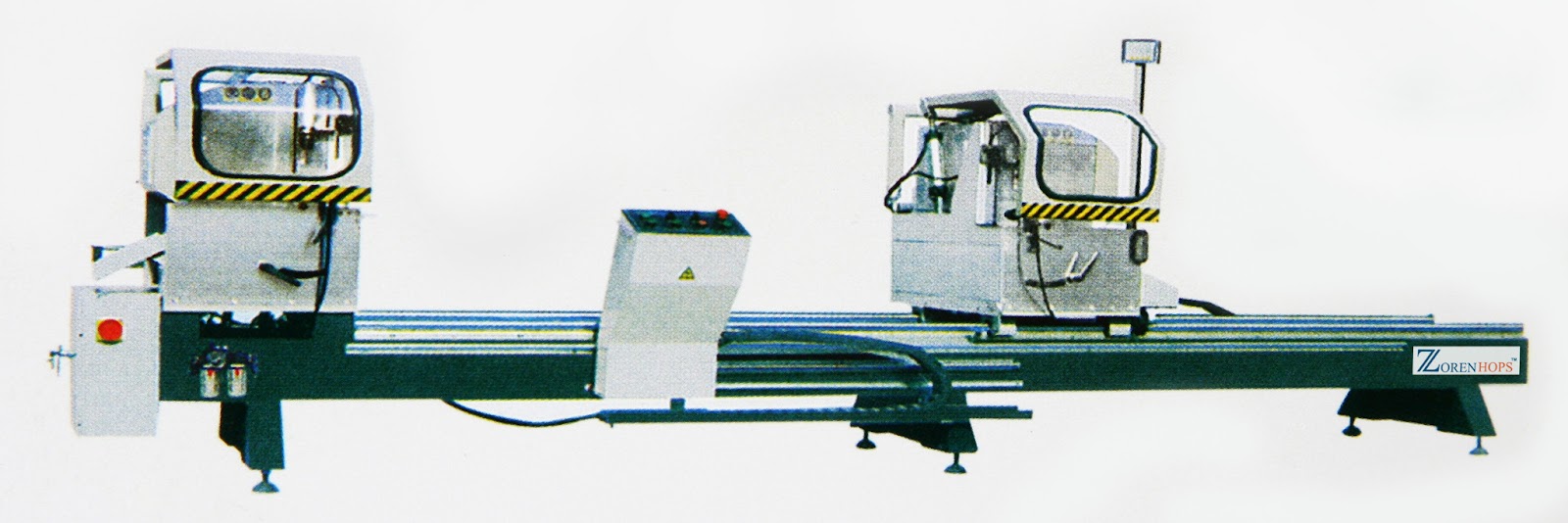

Double Mitre Saw

Double mitre saw ZHAUS-3500

The machine is made up of saw heads, working table, good circle guide way, machine frame, etc. Air pressure drives feeding and pressing, and the speed can be adjusted. It features swinging feeding and high cutting precision. There are movable shields on the saw heads. The working table moves with agility and can be locked in any location of your choice.

The machine is used for 45°, 90°cutting processing of aluminum and PVC profile with single or double saw heads. It features high efficiency and flexible operation and is necessary equipment for window and door processing.






Big double mitre saw ZHAS1-500X4200



Imported carbide saw blade gives accurate processing and high endurance. Imported liner bearing motion pair ensured steady processing accuracy. Saw blade rotate smoothly due to high accuracy main spindle. Uniform speed feeding and smooth motion due to robust hydraulic damping cylinder.

Automatically open able guard shield ensures safe operations. Auto-induction middle profile supporter and following profile supporter make the loading & clamping convenient. Adopts imported linear guide pair ≤ 0.3mm. Cutting precision: cutting angular error of the section ± 0.5’



Big double mitre saw ZHAS2-500X4200

The machine adopts the imported prototypical saw blade and imported linear bearing. The high precision main bearing makes the rotation of the saw blade stable. The gas –liquid damping cylinder realizes even feed & steady movement. The CNC precision saw system adopts the imported system including Delta of Taiwan.



 Big double mitre saw ZHAS3-500X4200



Used for the cutting of PVC profile, aluminum profile, curtain wall and corner connector.
The feeding system adopts imported linear guide pair, with high accuracy and stability. 45°, 90° and 67.5°cutting is available. Good linear guiding pair ensured steady processing accuracy. Saw blade rotates smoothly due to high accuracy main spindle. Uniform speed feeding and smooth motion are due to hydraulic damping cylinder.

Middle auto profile supporter and following profile supporter make the loading and clamping convenient. It has features of easy operation, reliable performance, advanced technique and convenient maintenance, etc. Imported carbide saw blade ensures accurate processing and high efficiency.







 ZHAC-500 Double Mitre saw in heavy duty (Digital –Control/ Digital Display)


Mainly used for cutting & lying of aluminium alloy curtain wall and window materials and also used for cutting and lying off plastic profiles. It utilizes hard alloy saw blade for diameter as big as 500 mm as well as high linear speed and high processing precision. The two sawing units can cut profiles simultaneously or separately; the saw blade can swing to required angle between 900 and 450. The saw blade cuts the profile from bottom to top safely and reliably, and the cutting height and width is enough. The machine tool can be equipped with digital display and CNC System unit.
